Last UPDATED July 29 2024
DRIVE TRAIN BUILD LIST
Click on the links for pictures.
ENGINE
TA PERFORMANCE ALUMINUM BLOCK

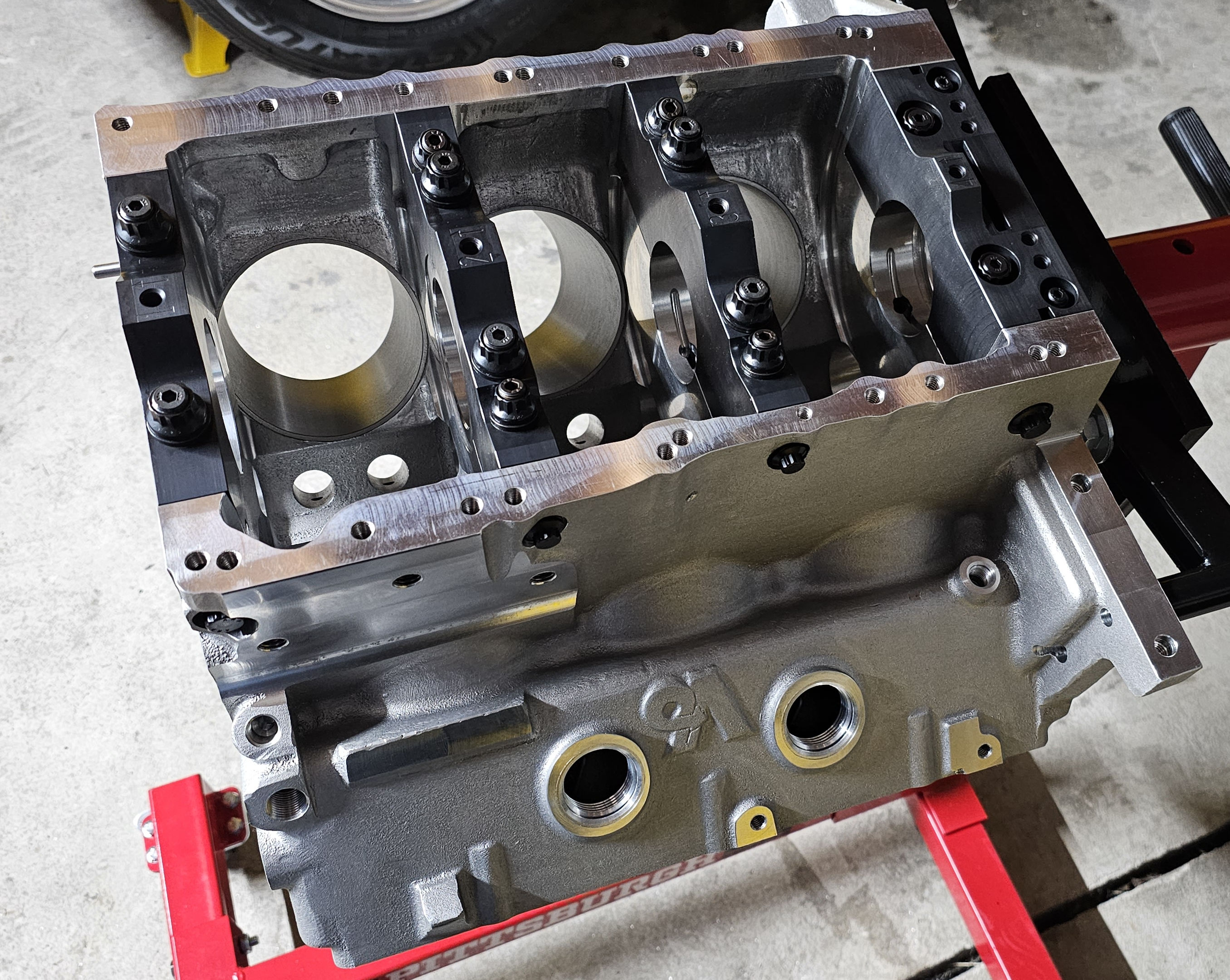

6 BOLT MAIN BEARING CAPS

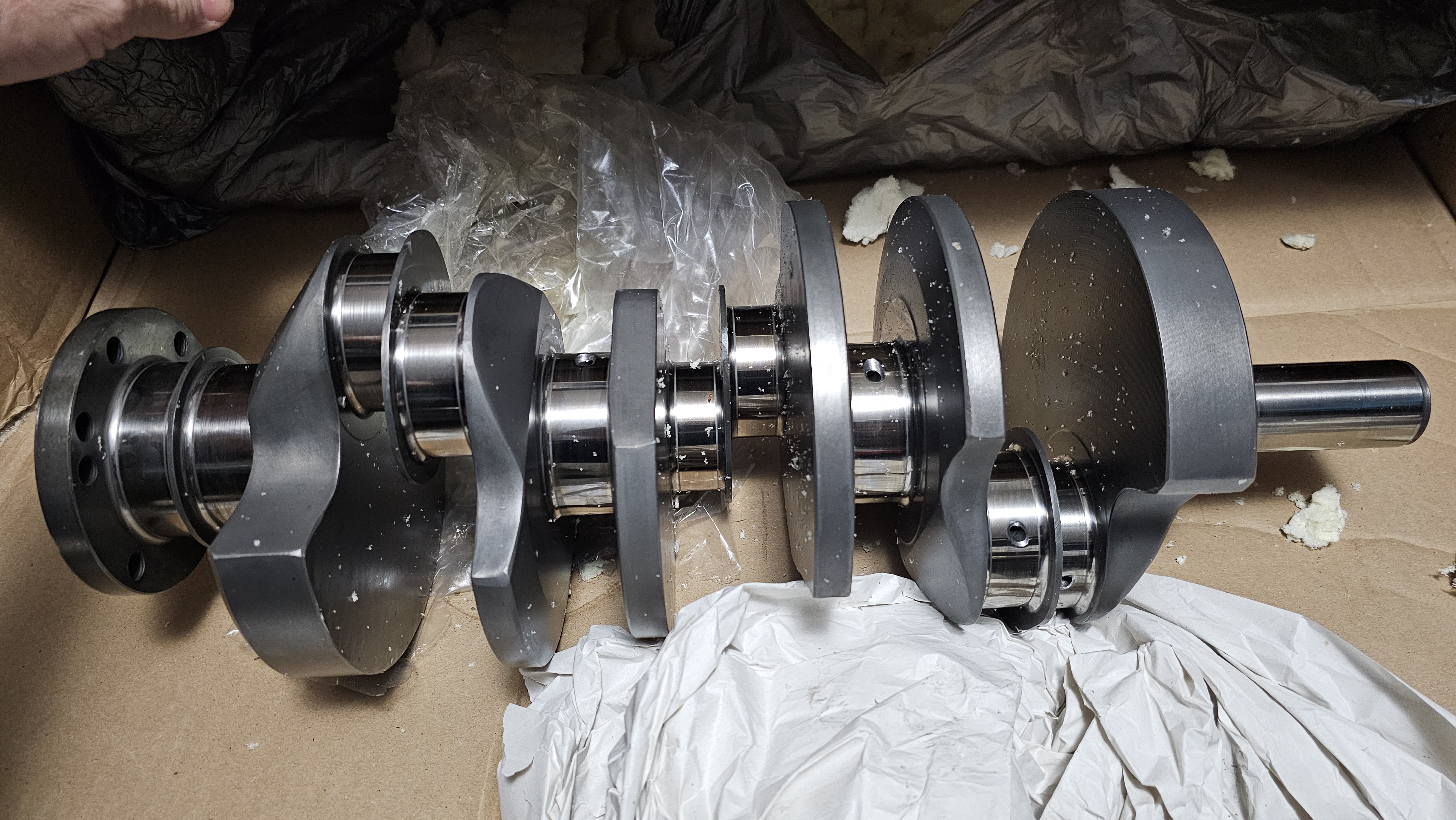

BILLET CRANKSHAFT - 3.625" STROKE

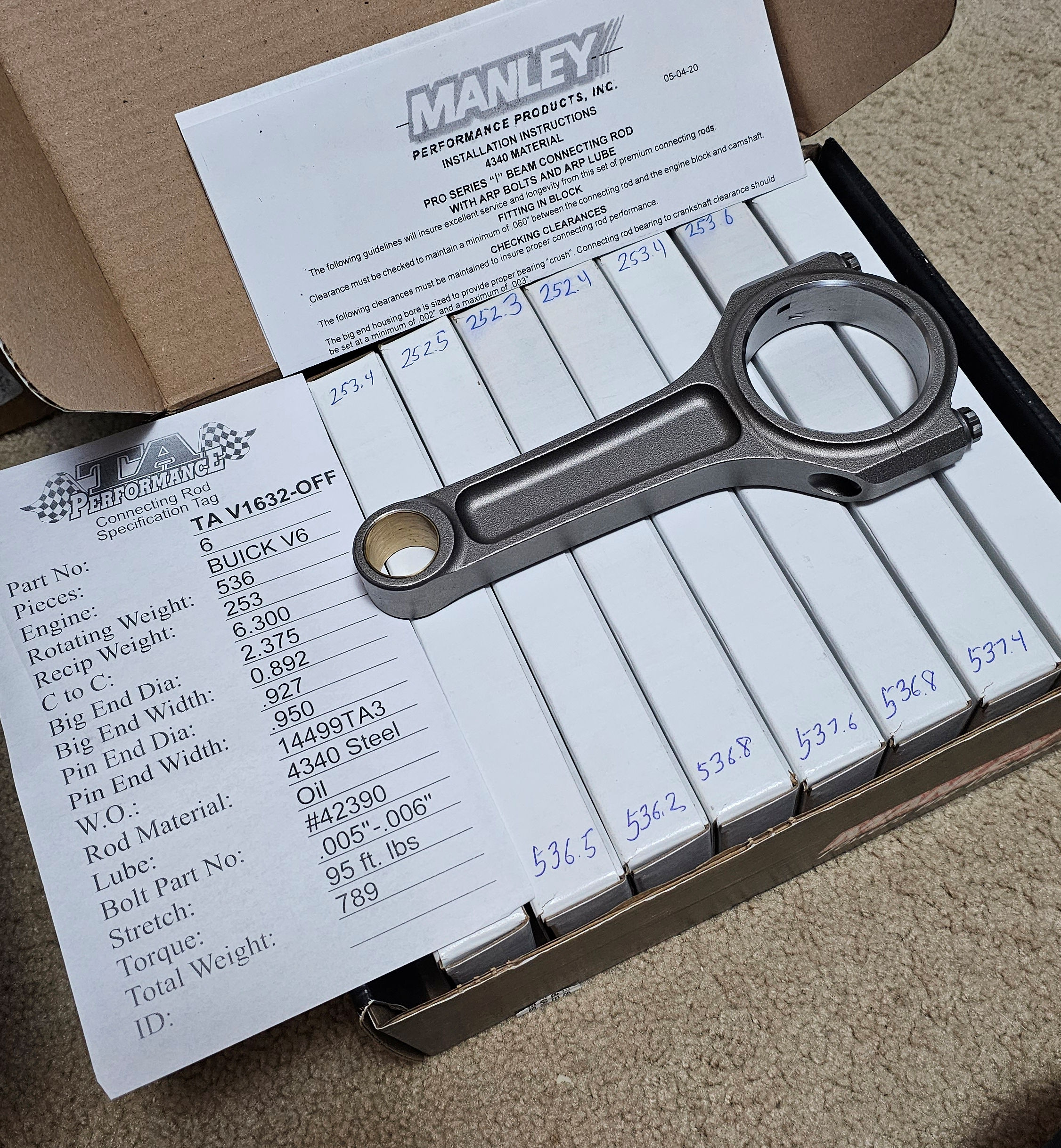

BILLET RODS - 6.300"

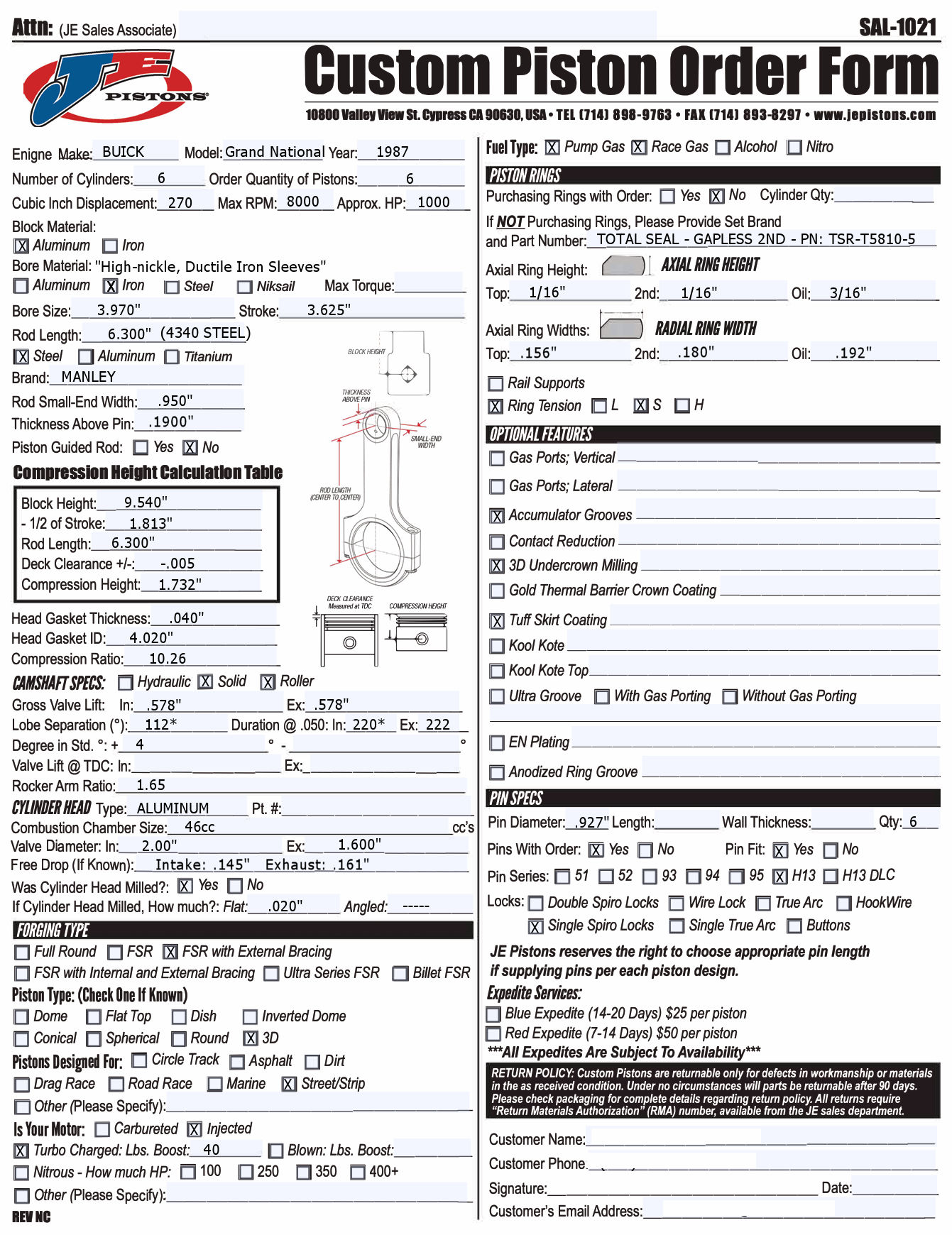

FORGED PISTONS 3.970" BORE

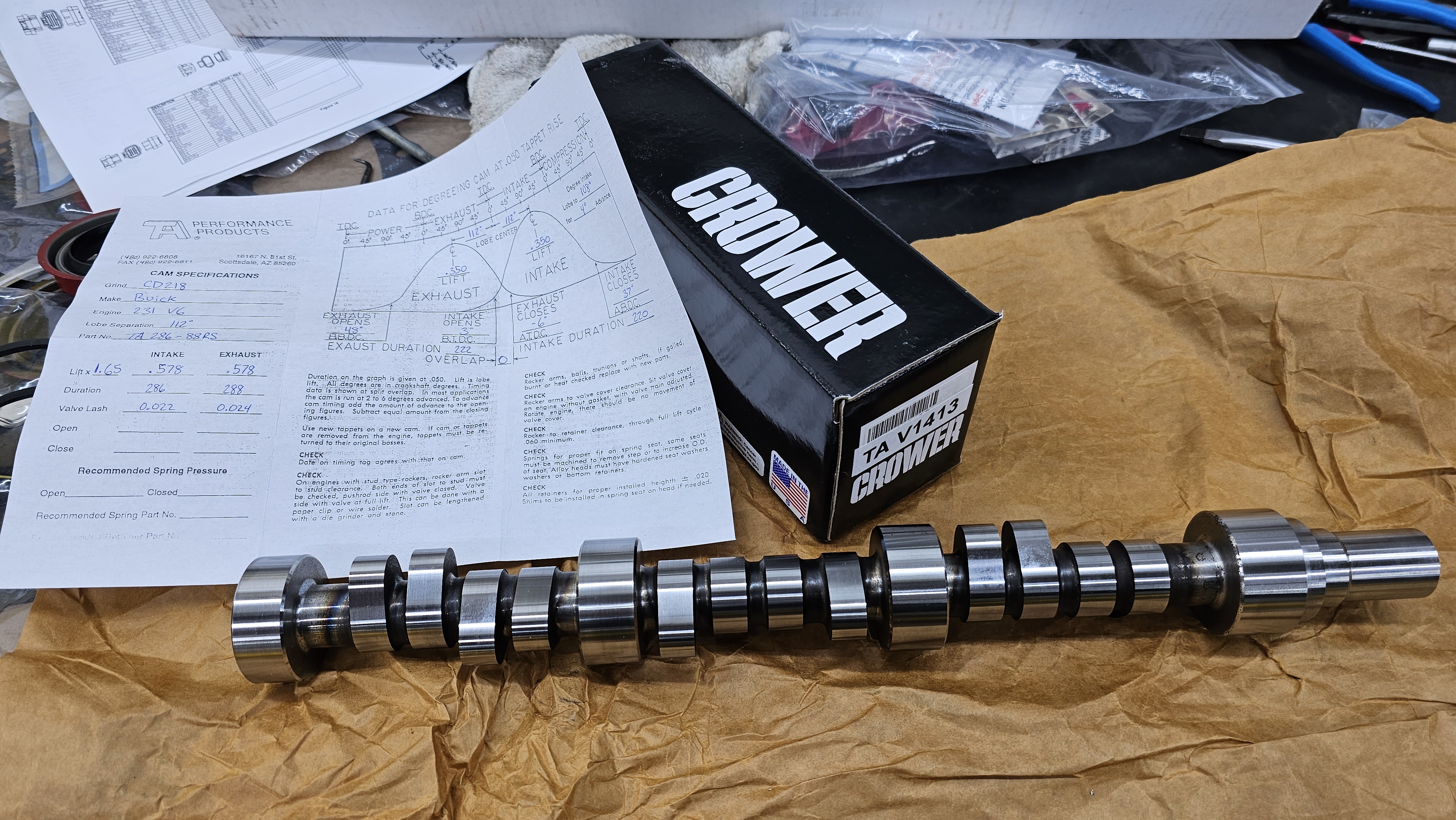

BILLET ROLLER CAM - 220-222 DURATION .578" TOTAL LIFT

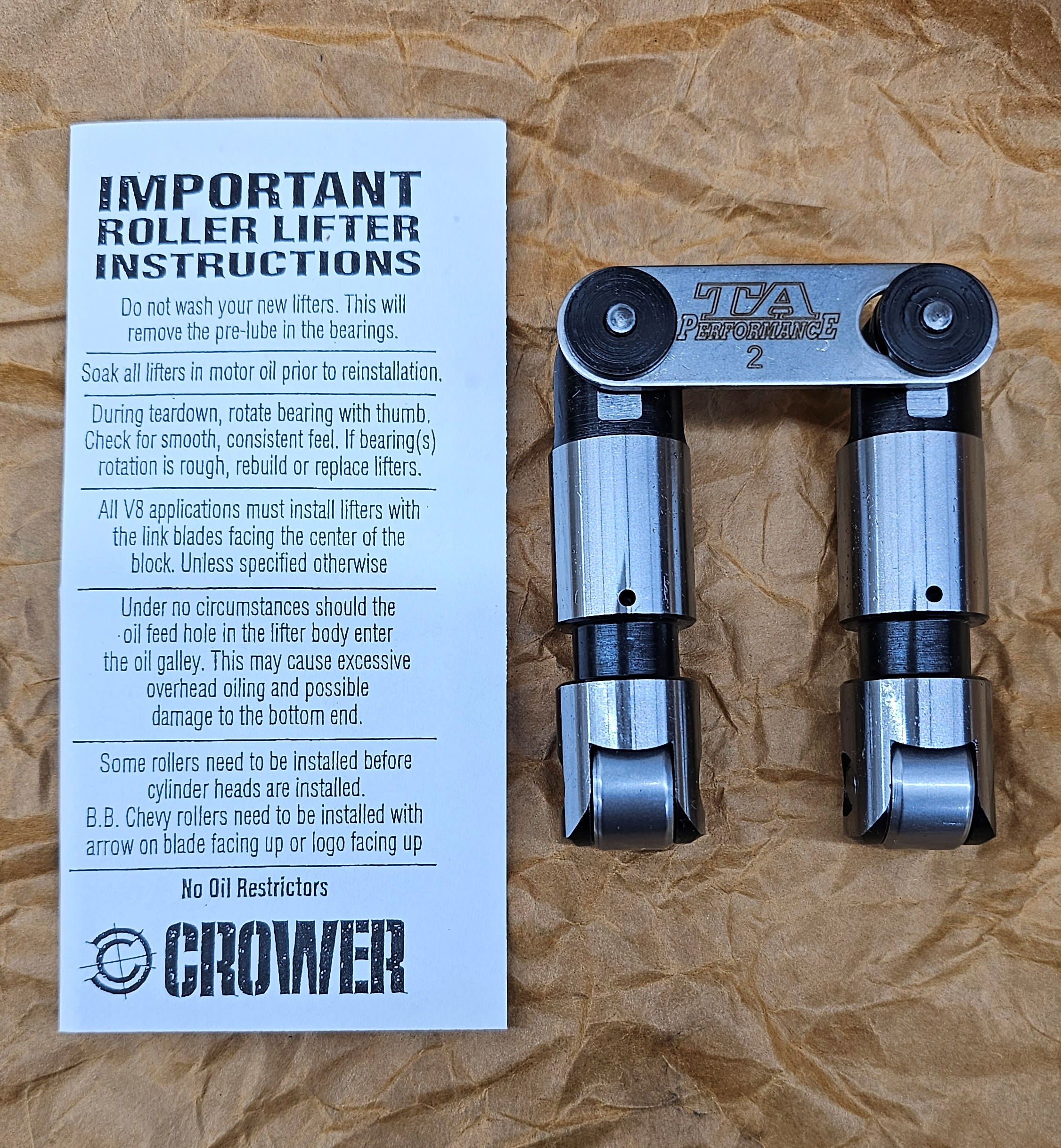

ROLLER LIFTERS

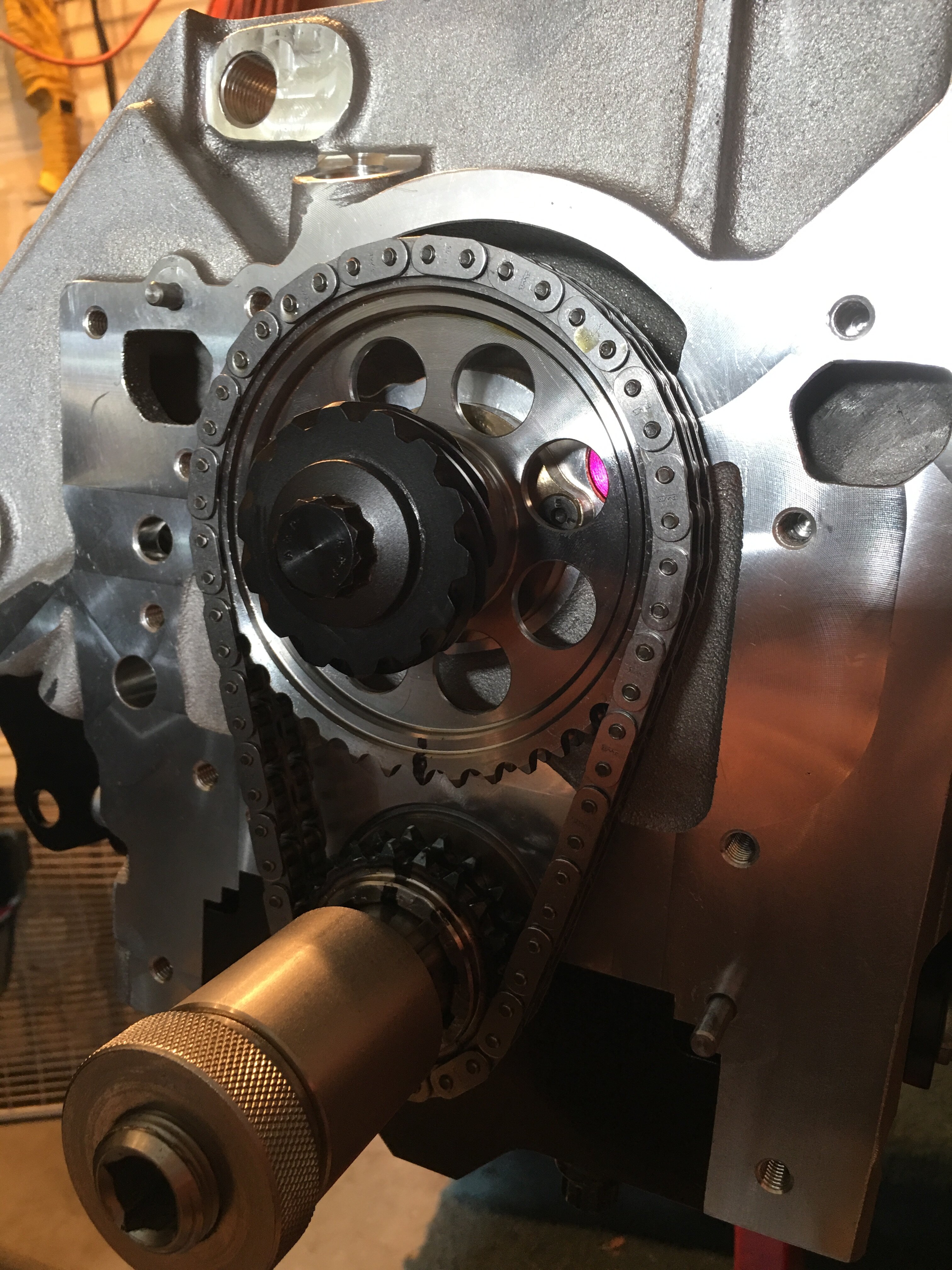

DOUBLE ROLLER TIMING CHAIN

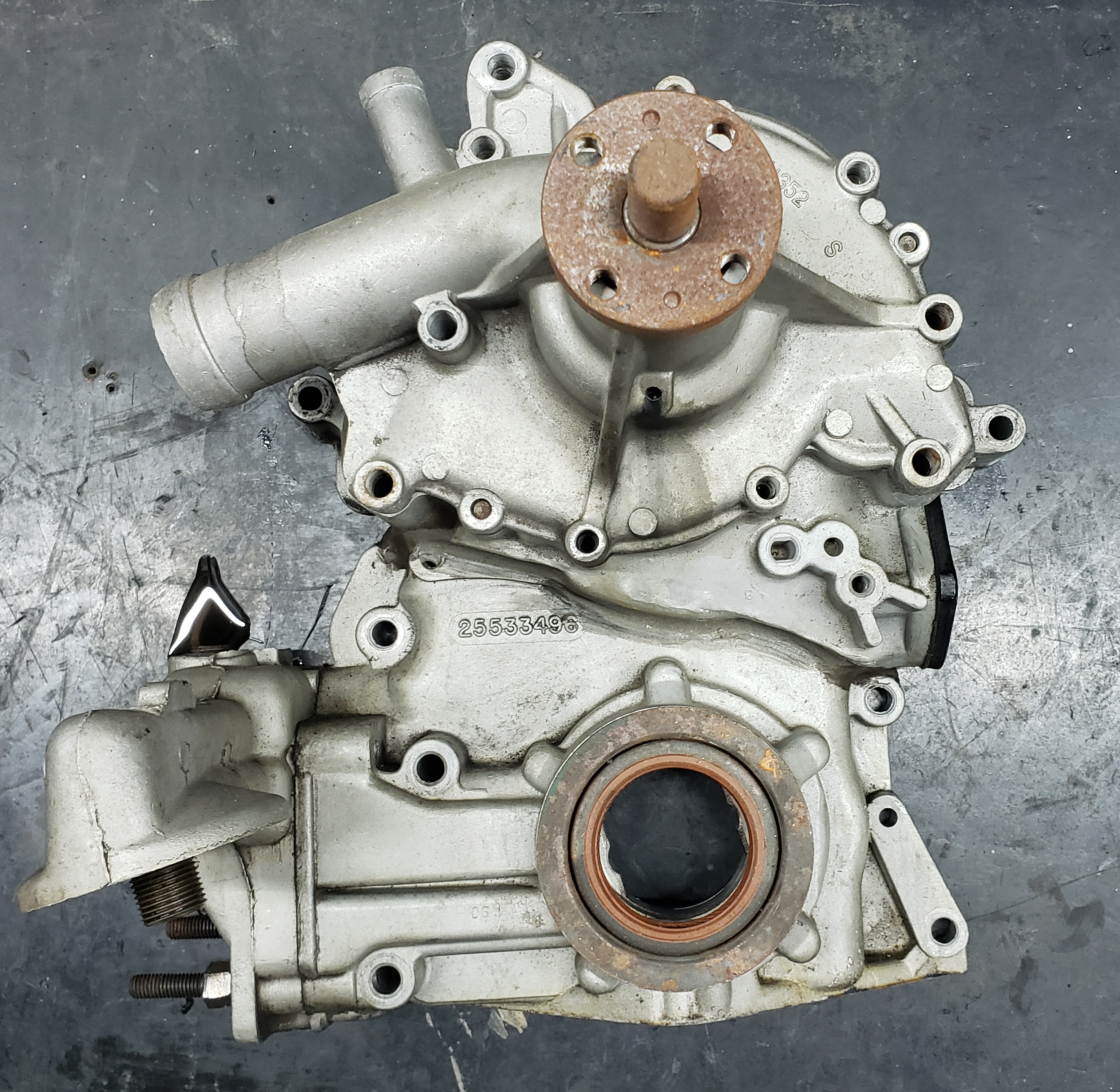

GEROTOR OIL PUMP TIMING COVER

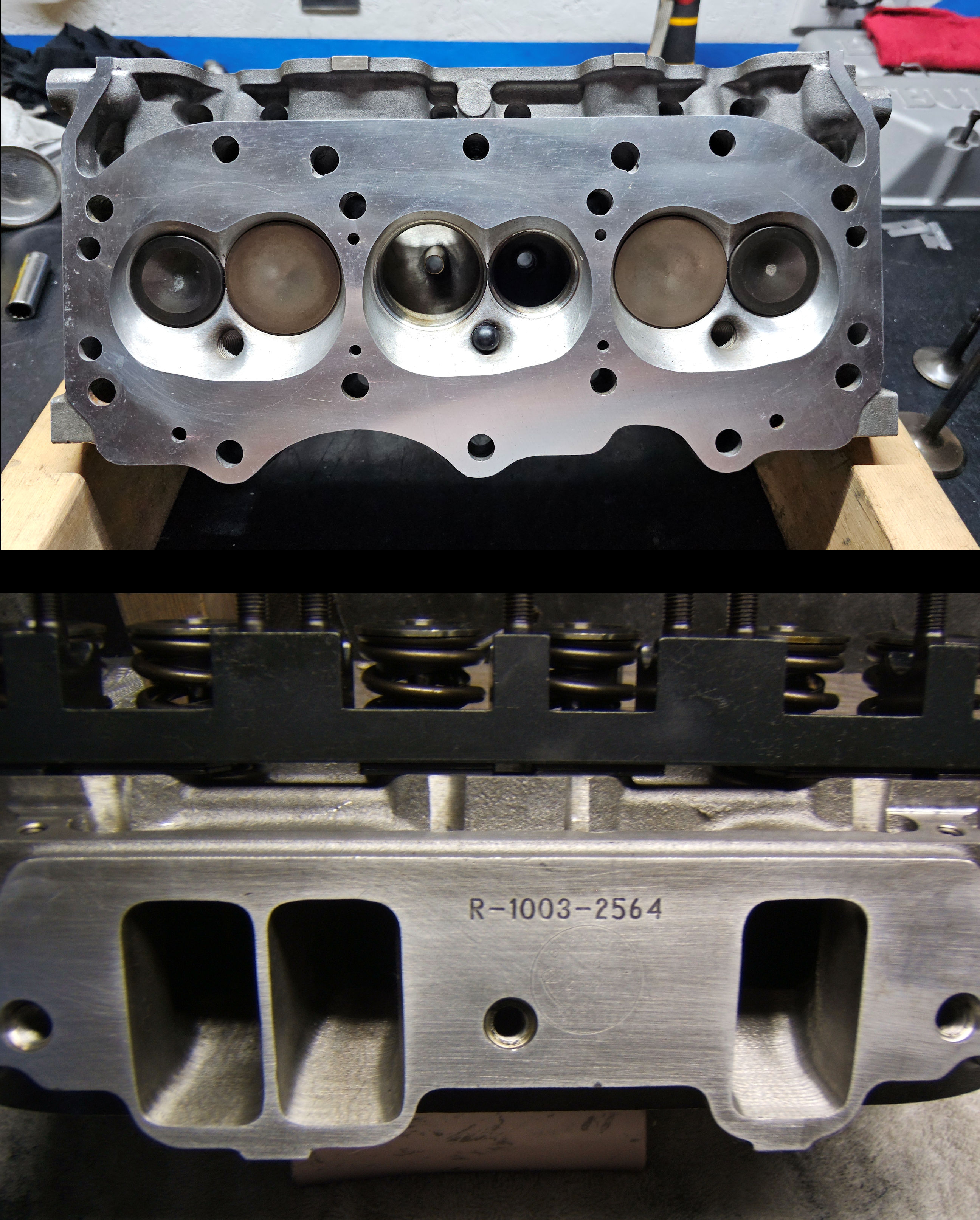

GN1-R ALUMINUM HEADS (RACE PORTED)

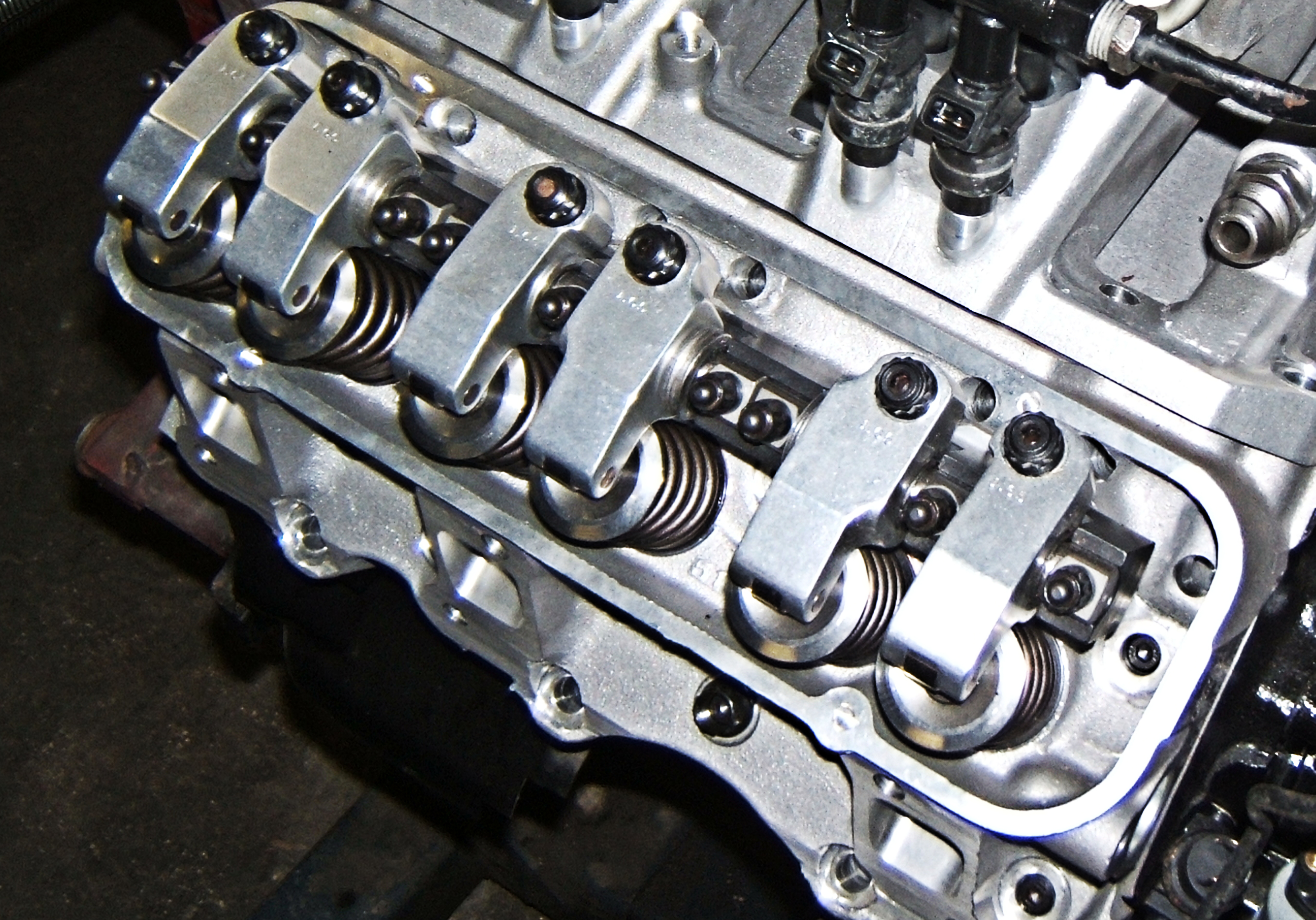

T&D 1.65 ROLLER ROCKERS

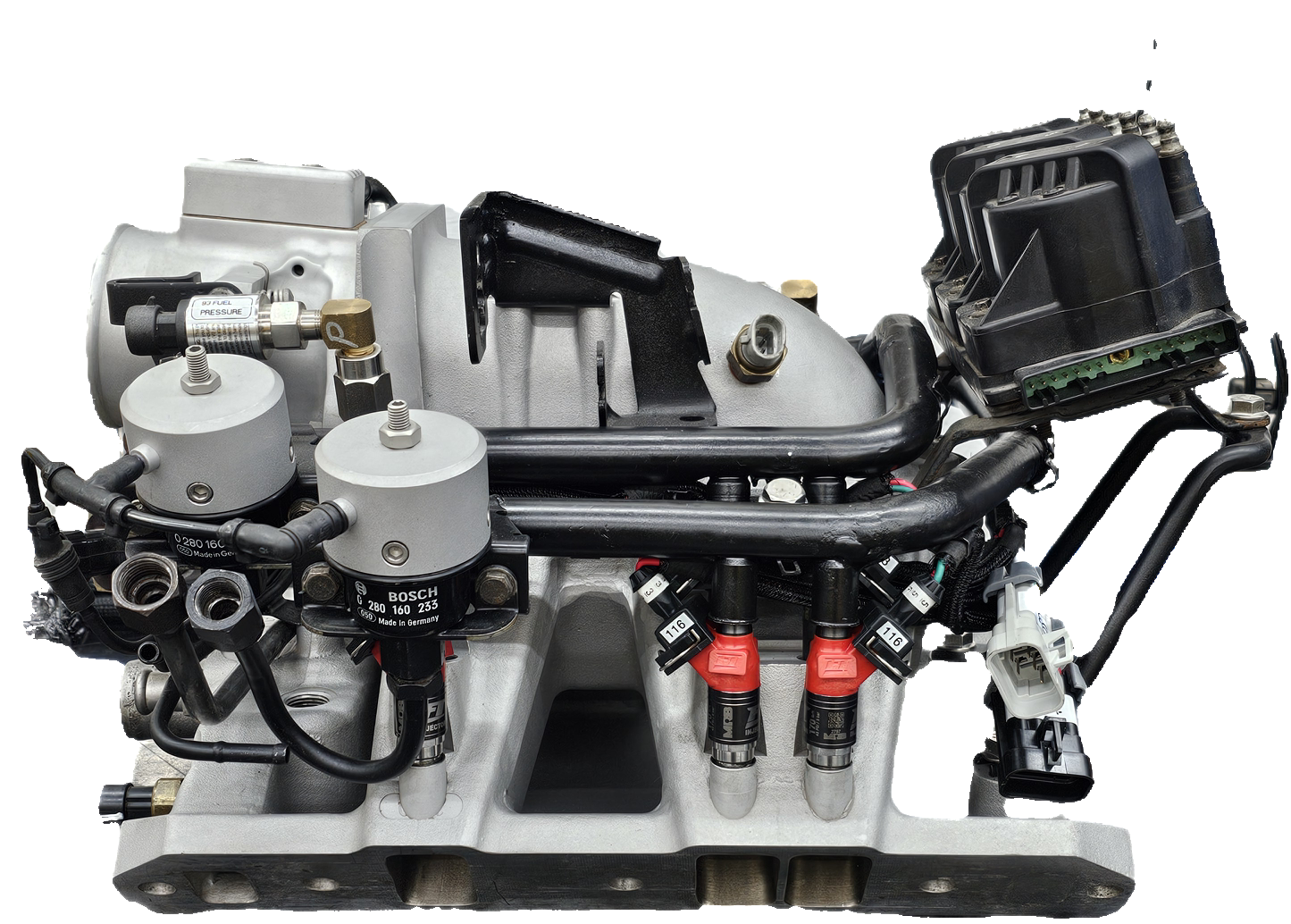

GN1 INTAKE (RACE PORTED)
12 INJECTORS: 6 60lb for 87 OCTANE and 6 170lb for 116 OCTANE

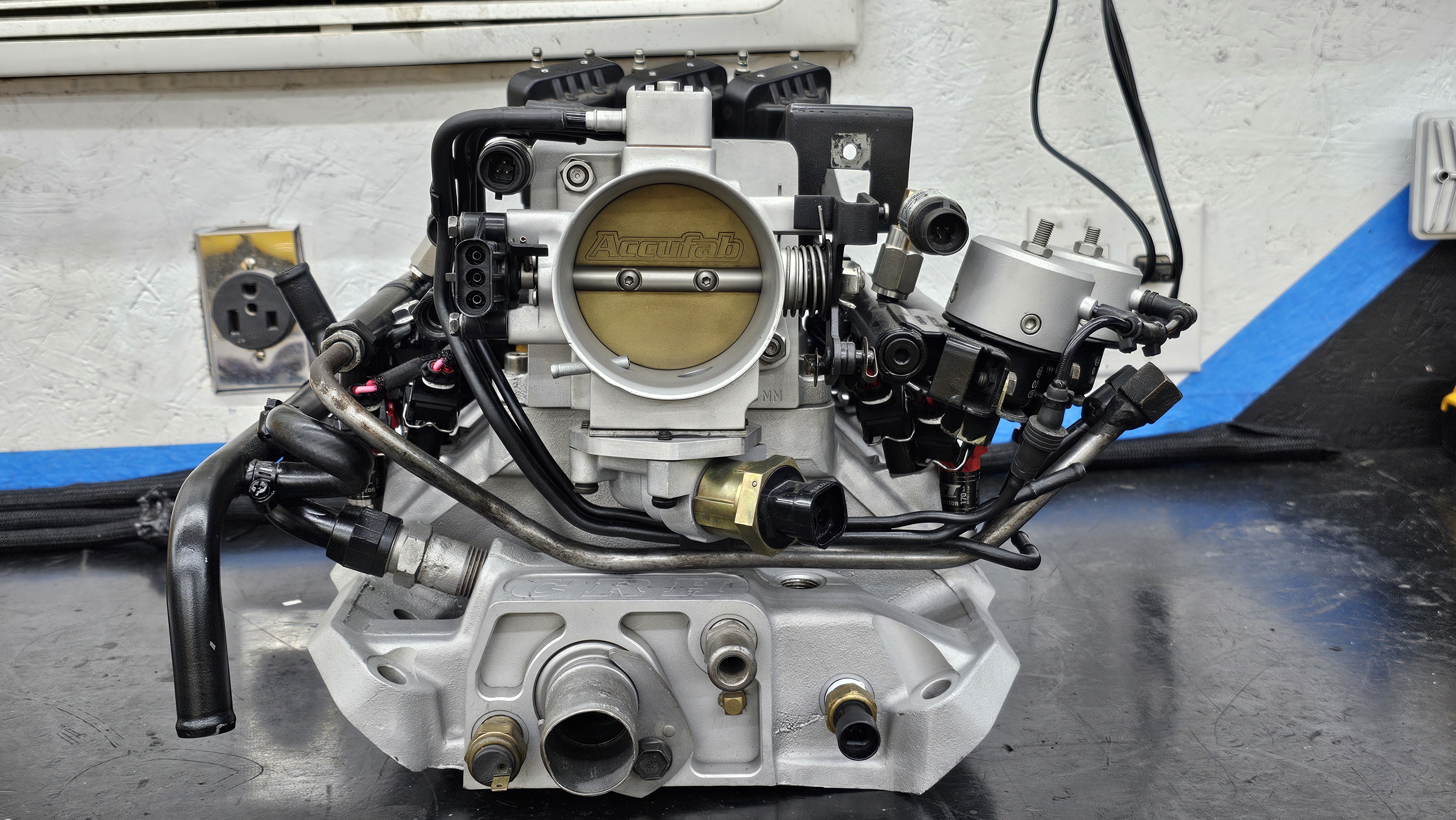

70MM THROTTLE BODY
TURBO Related

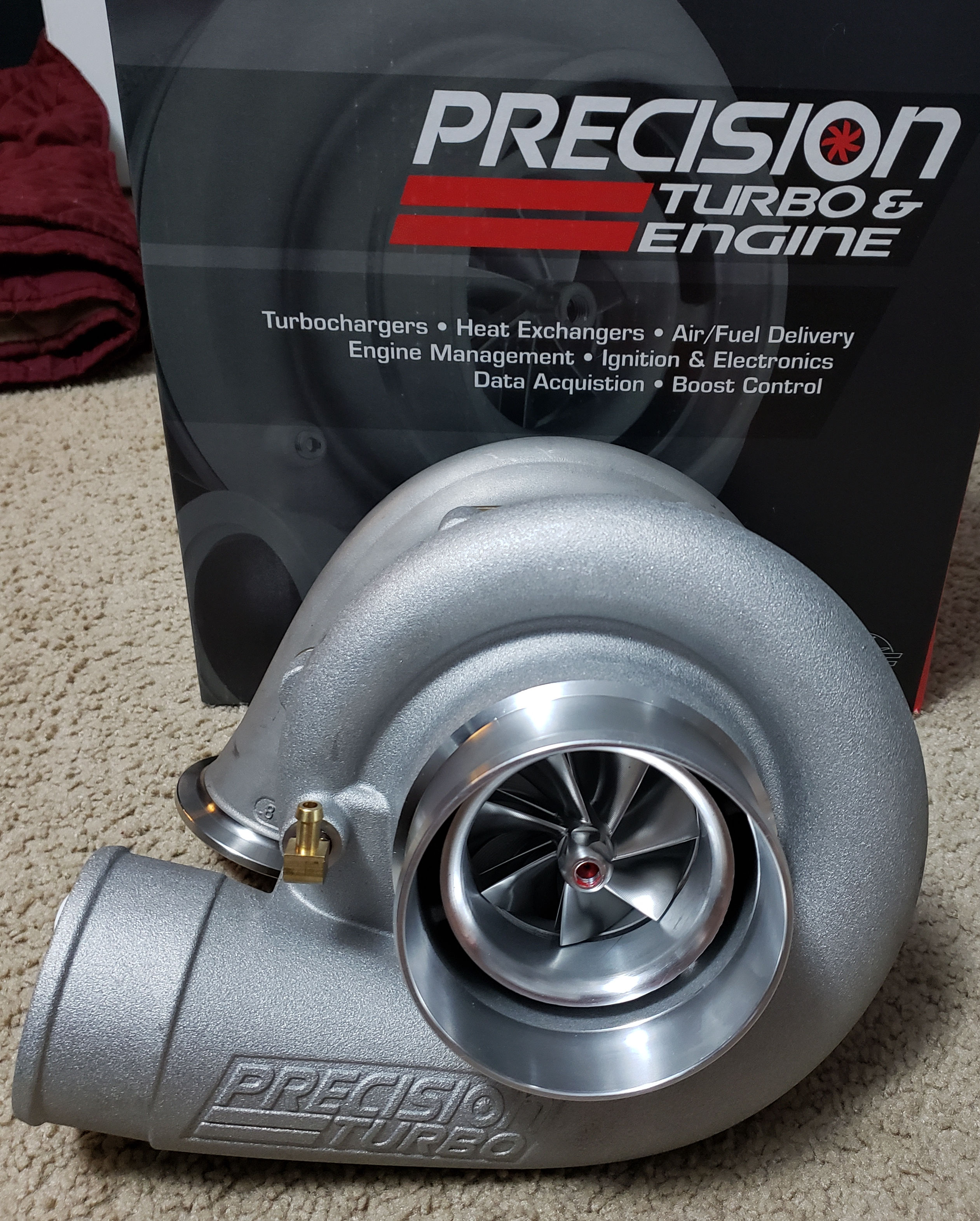

PT6870 DBB TURBO - V-BAND .96A/R EXH HSG

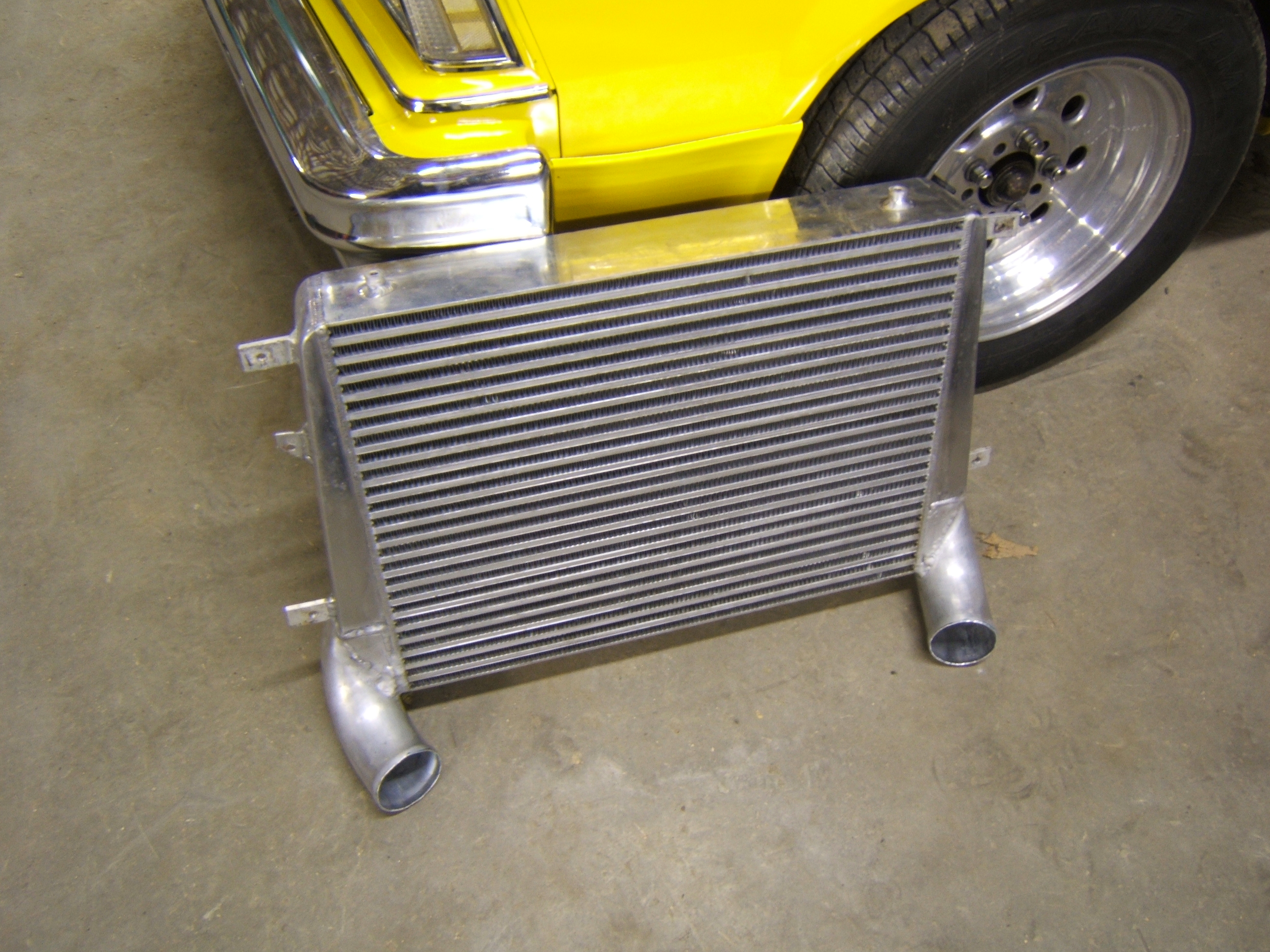

EBAY INTERCOOLER MEASURING 24" X 17" X 4"

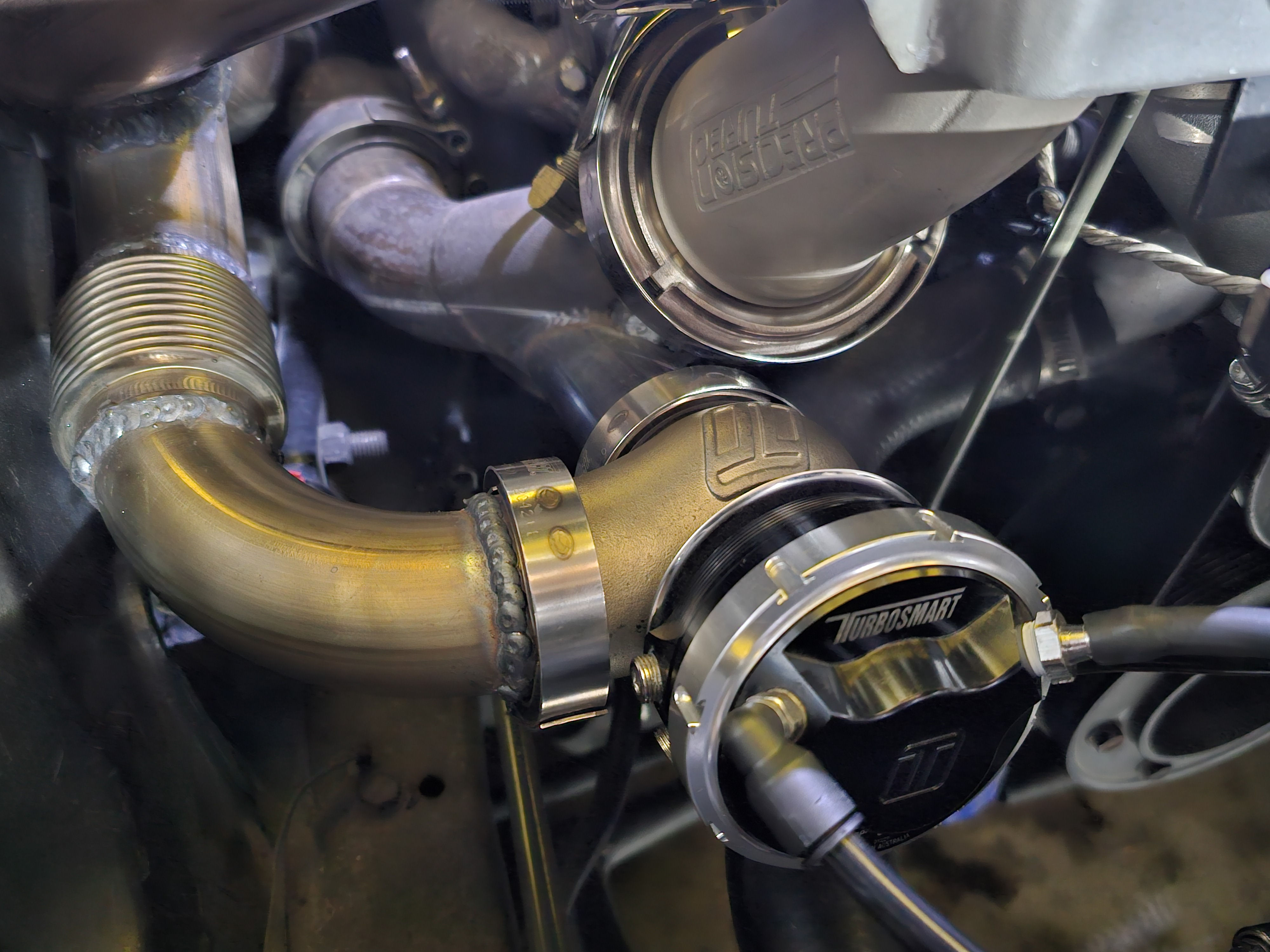

TURBOSMART GENV 45 COMPRESSED GAS WASTEGATE
ENGINE ELECTRICAL
HOLLEY DOMINATOR ECU

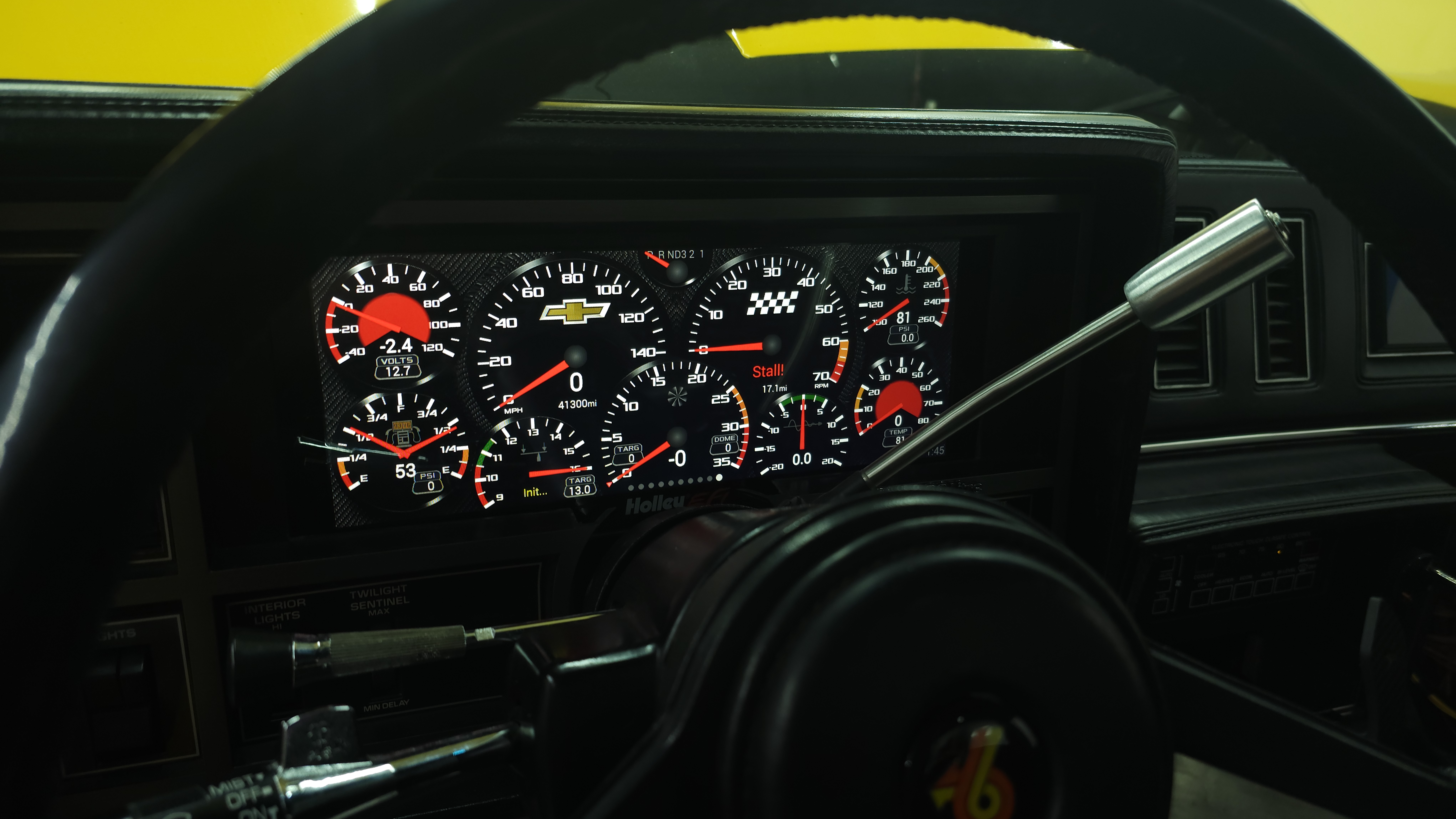

HOLLEY PRO DASH - 12.3"
8 CHANNEL EXHAUST GAS TEMPERATURE THERMOCOUPLES

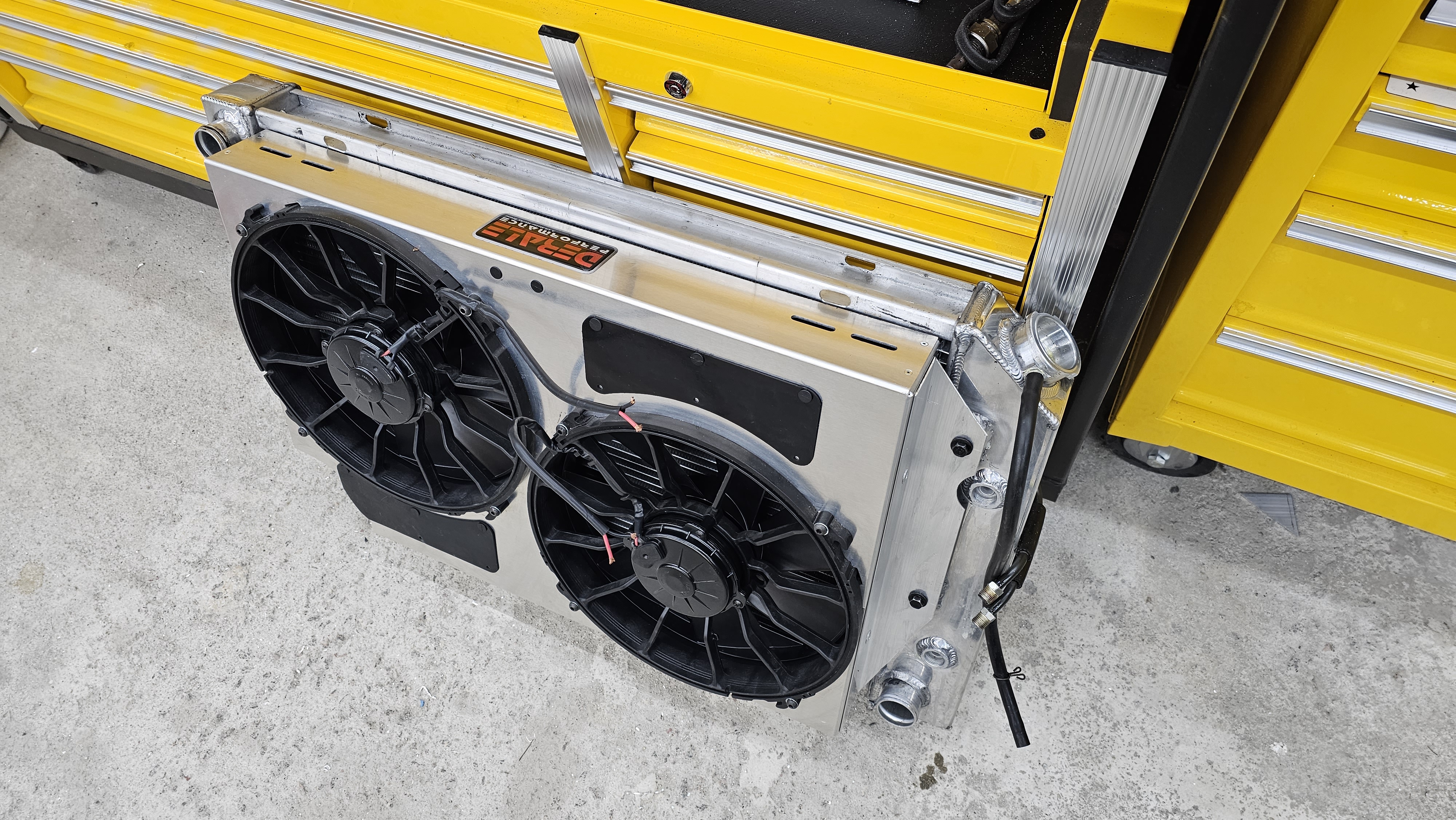

DERALE FANS on CHAMPION ALUMINUM RADIATOR
DERALE DUAL ELECTRIC FANS - Video
SINGLE WALBRO 340 FUEL PUMP (FACTORY TANK)

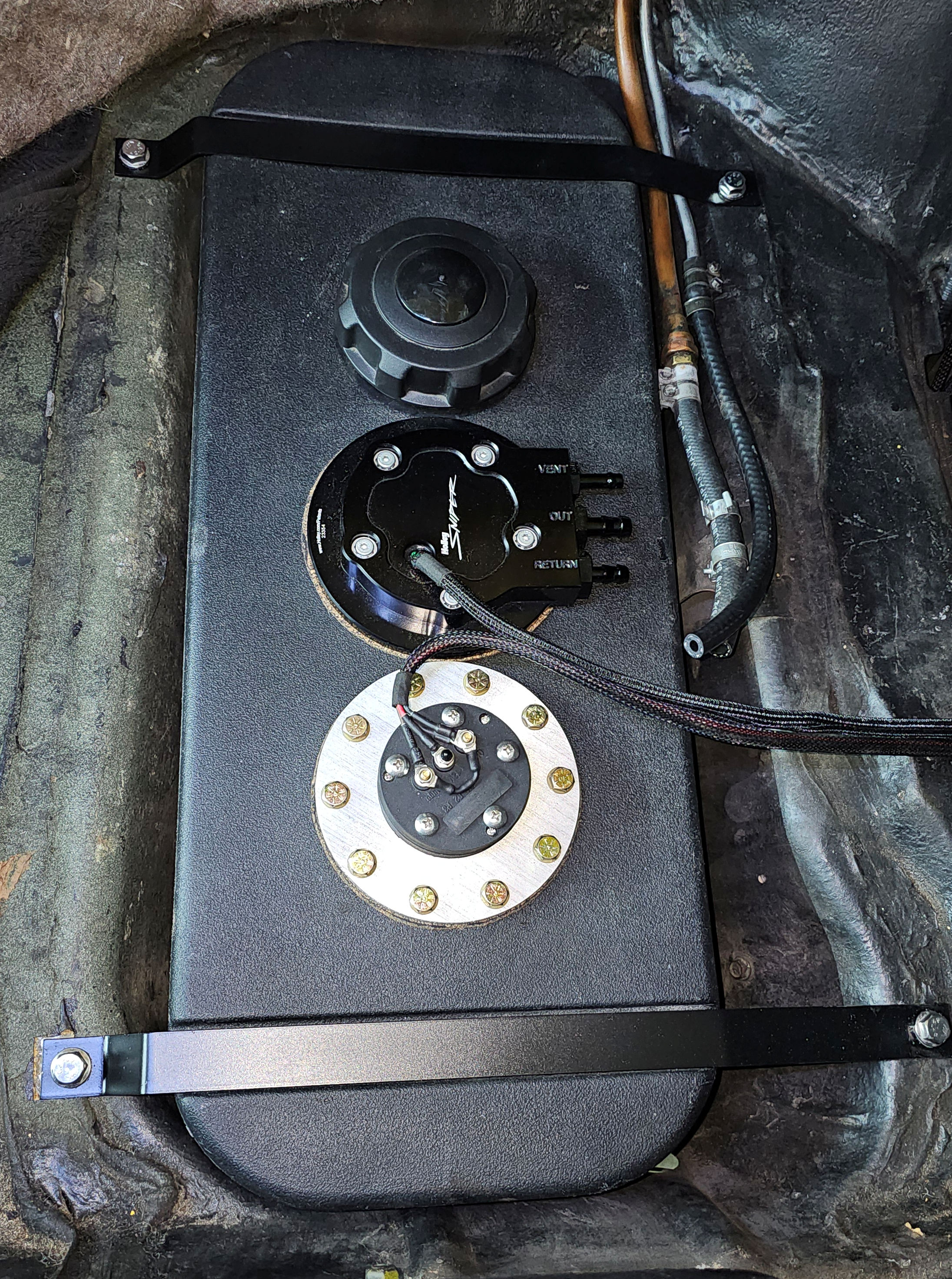

SNIPER DUAL 340 FUEL PUMPS (116 RACE GAS TANK)
TRANSMISSION and REAR AXLE

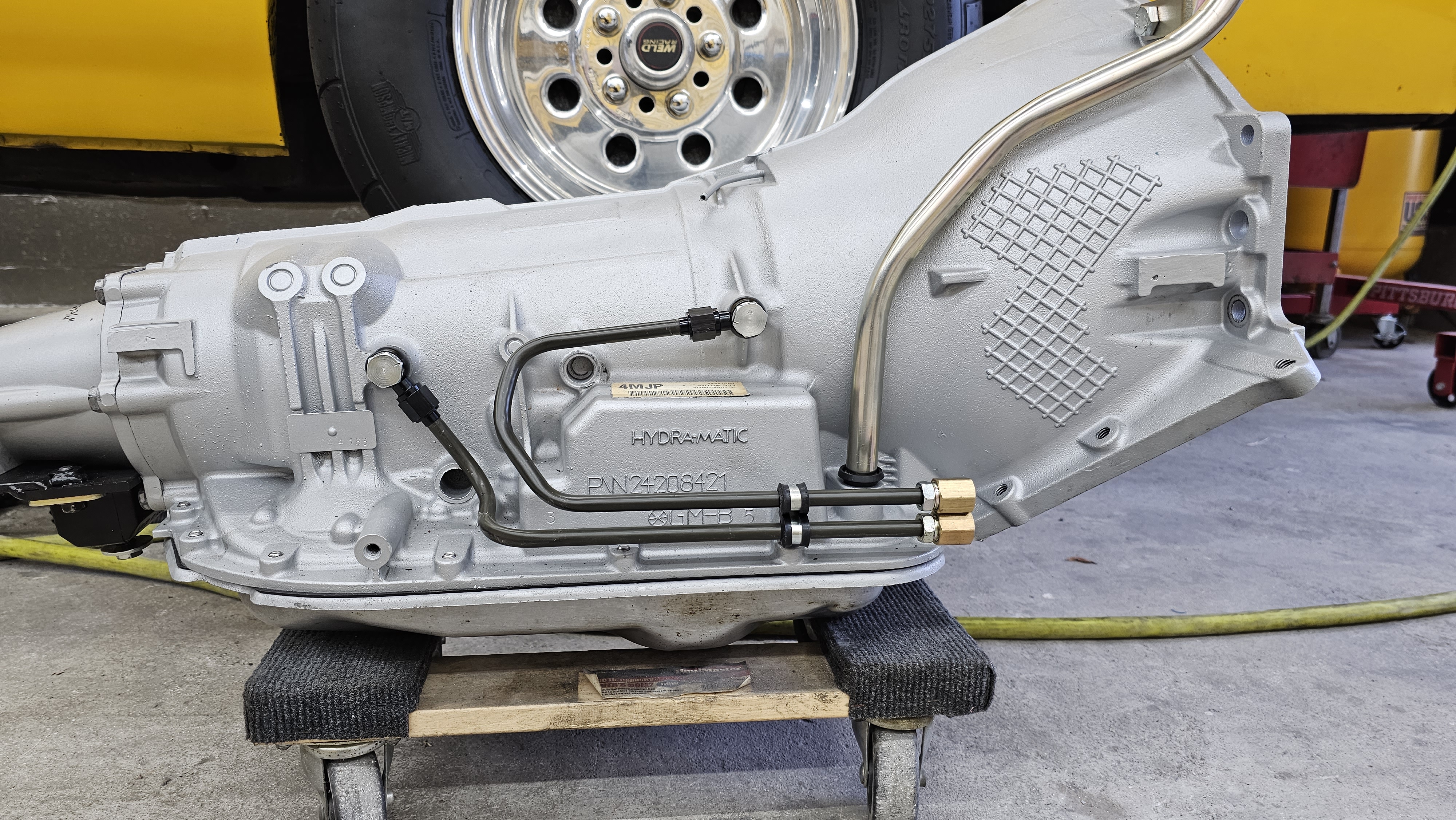

4L80E AUTOMATIC OVERDRIVE
8.5" GN REAR END WITH 3.42 GEARS

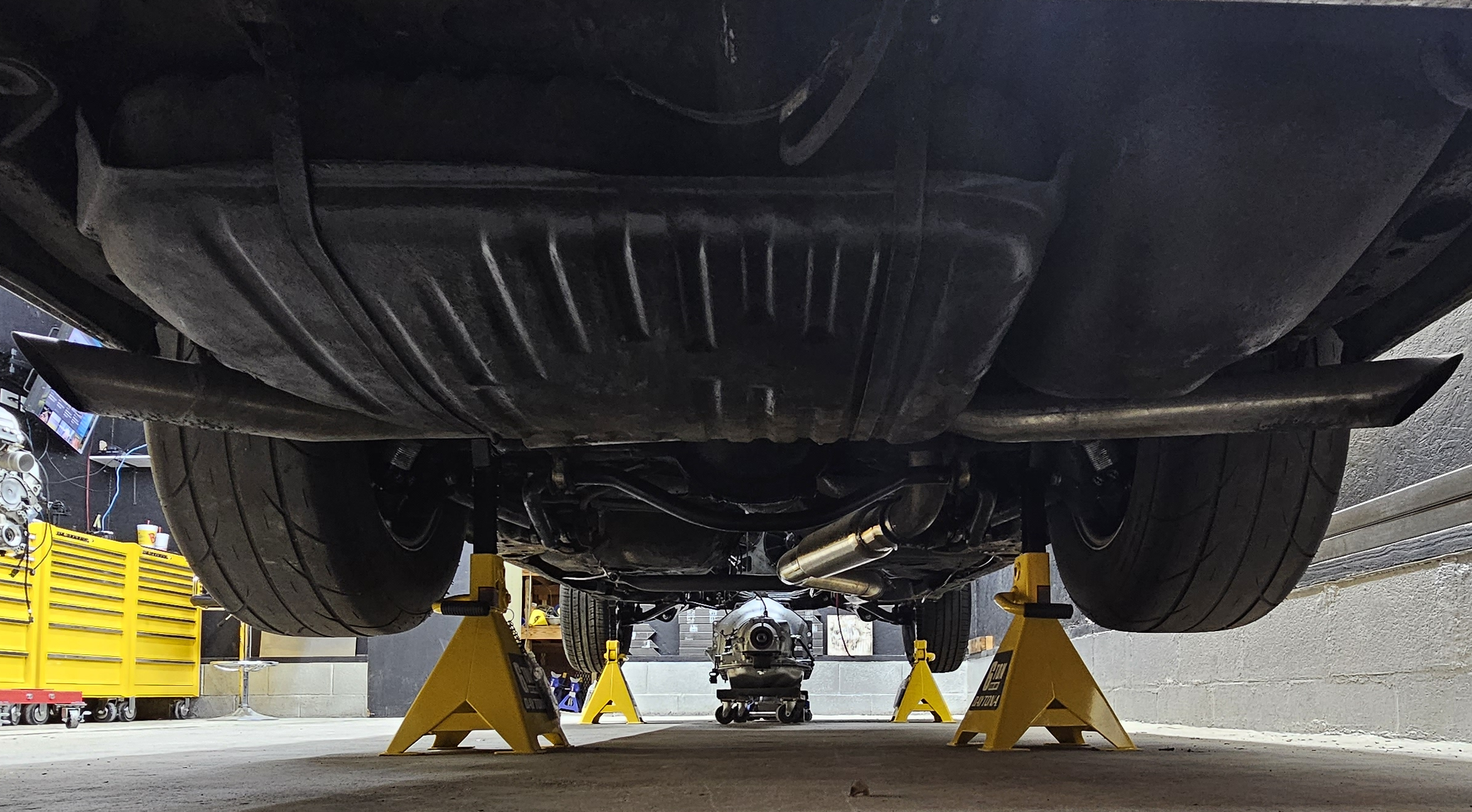

HR PARTS-N-STUFF REAR ANTI SWAY BAR
EATON POSI TRACTION
30 SPLINE AXLES

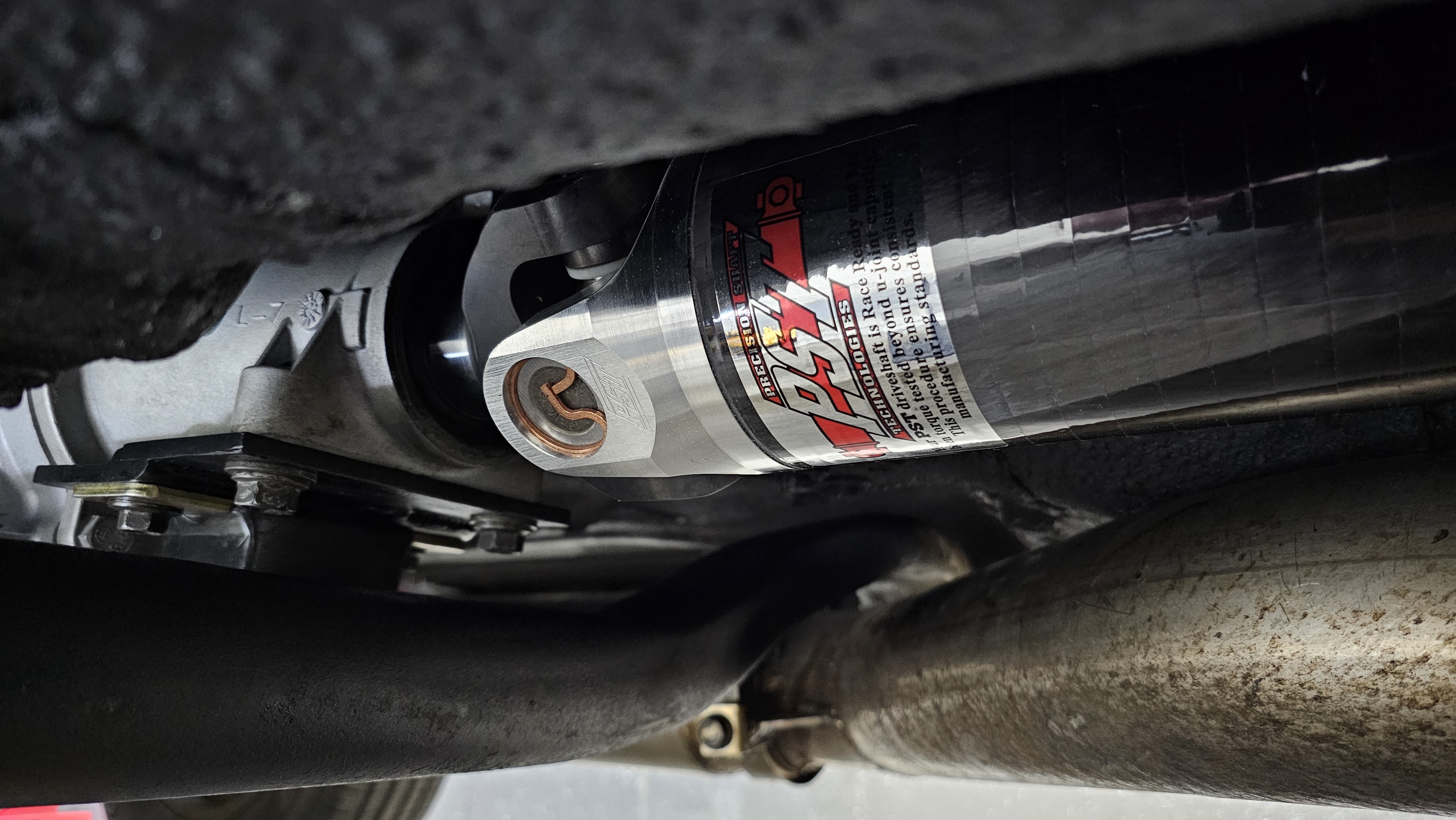

CARBON FIBER DRIVE SHAFT
SUSPENSION

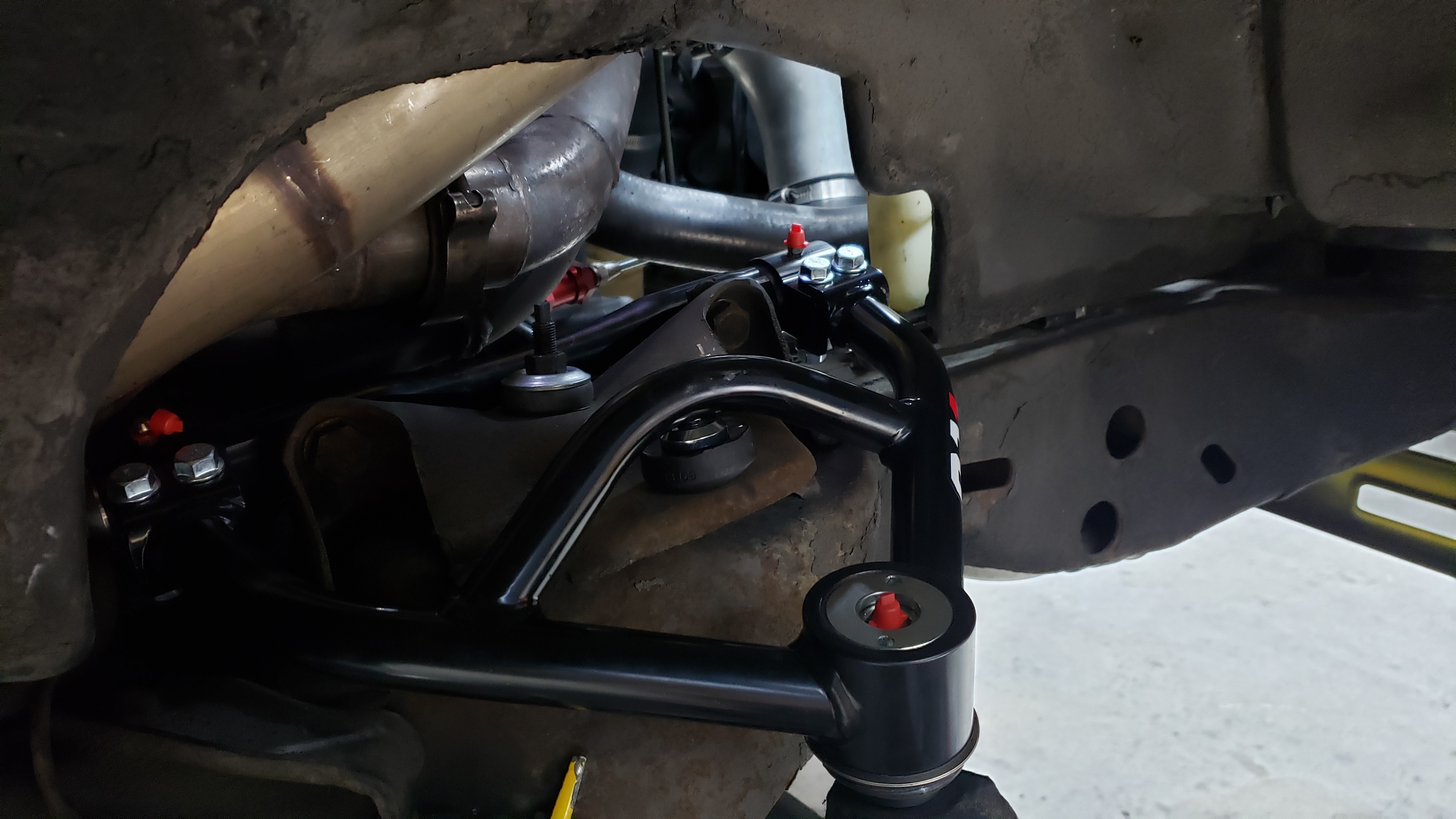

QA1 FRONT UPPER CONTROL ARMS

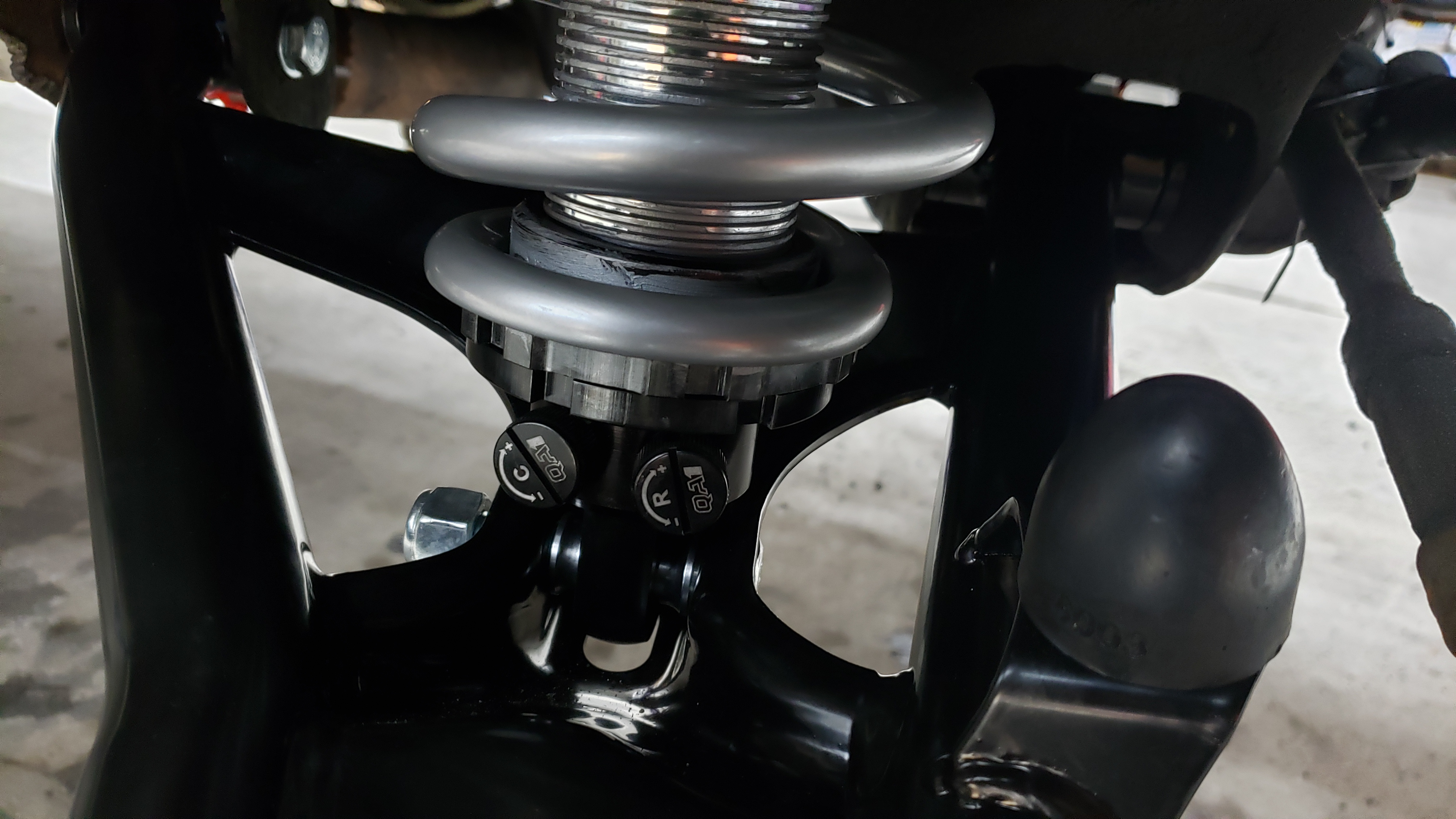

QA1 FRONT DOUBLE ADJ COILOVERS - 350lb SPRINGS

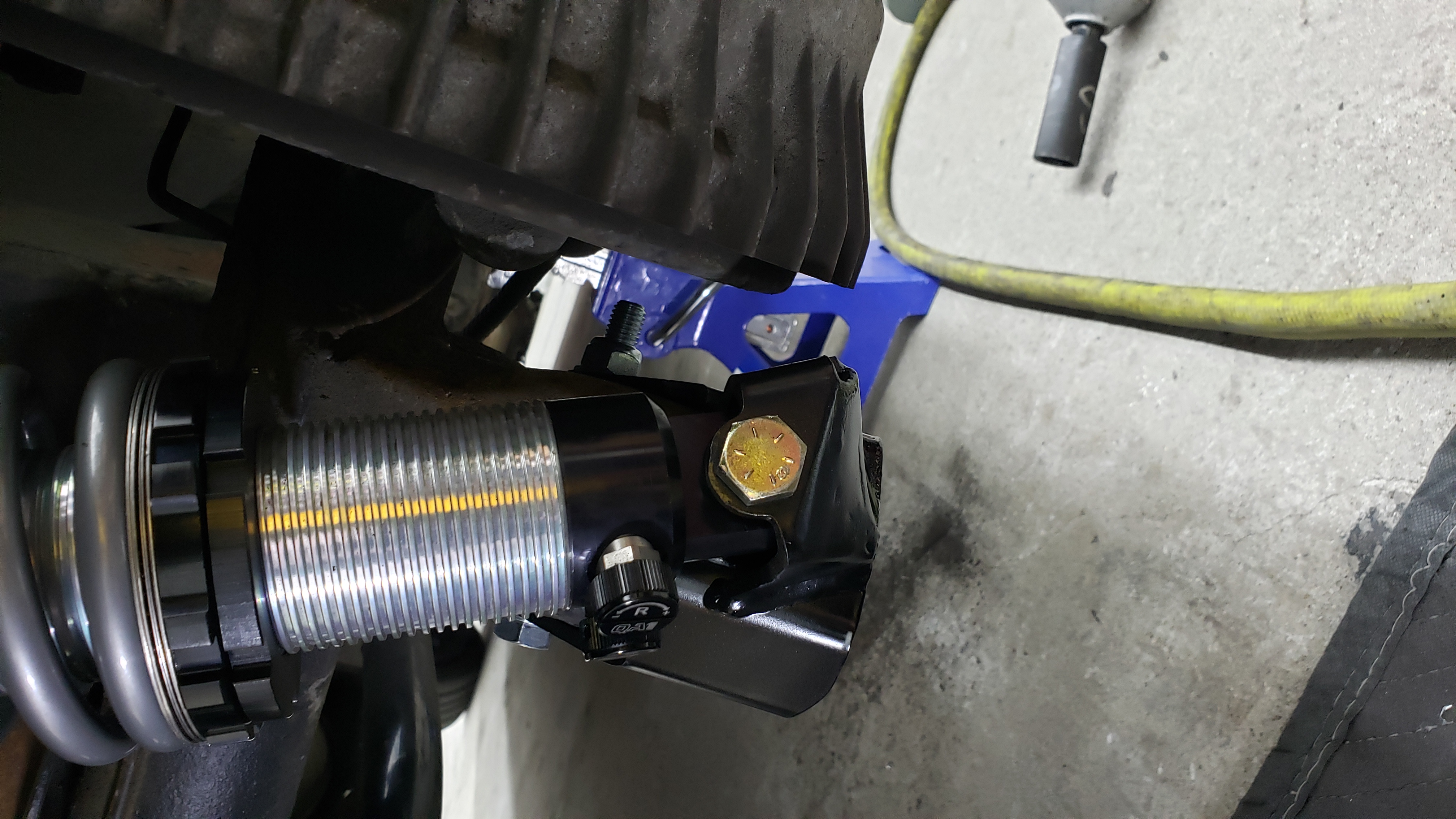

QA1 REAR DOUBLE ADJ COILOVERS - 170lb SPRINGS
UMI DOUBLE ADJ REAR UPPER ARMS
UMI DOUBLE ADJ REAR LOWER ARMS

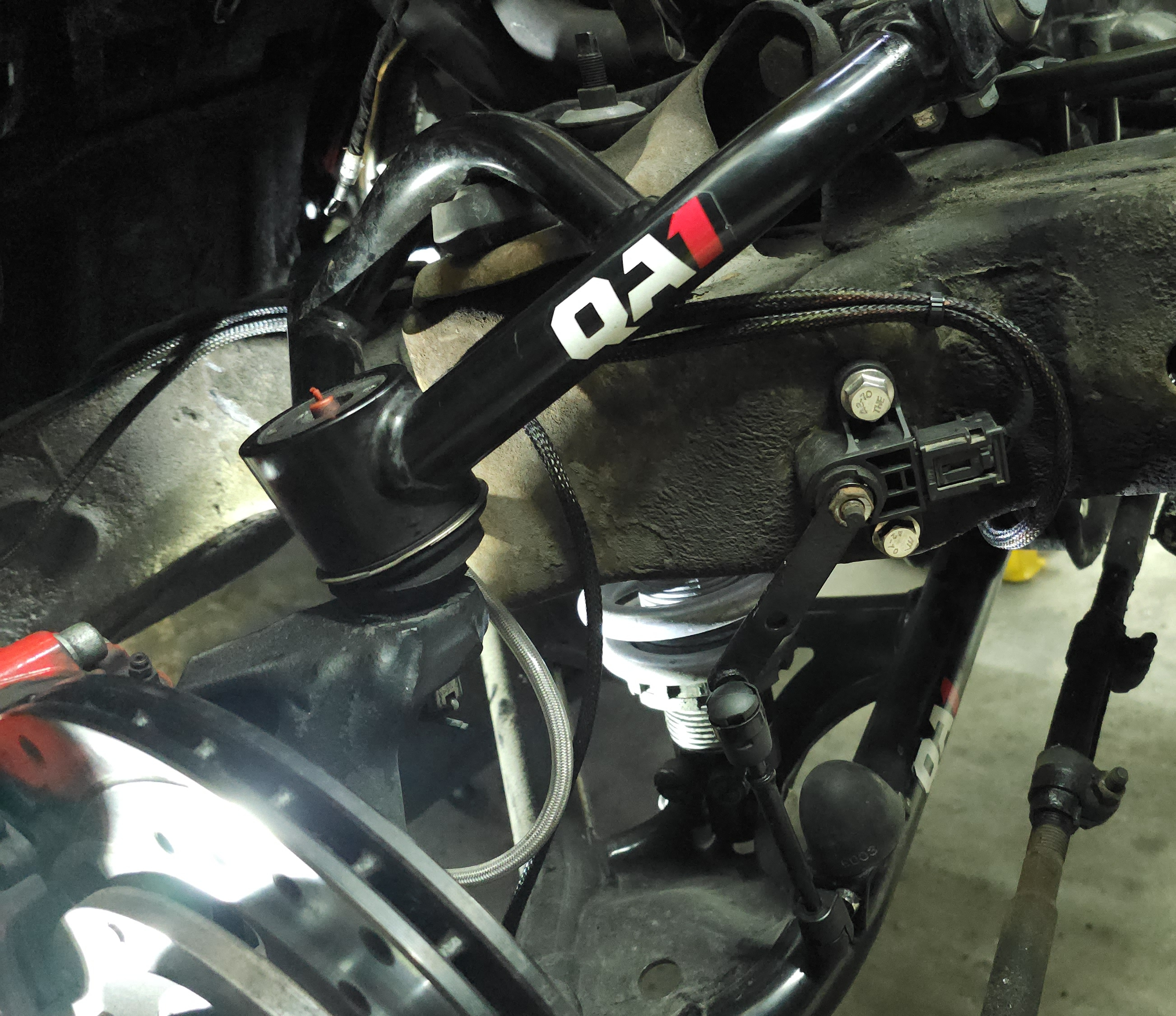

FRONT and REAR SUSPENSION RIDE HEIGHT SENSORS

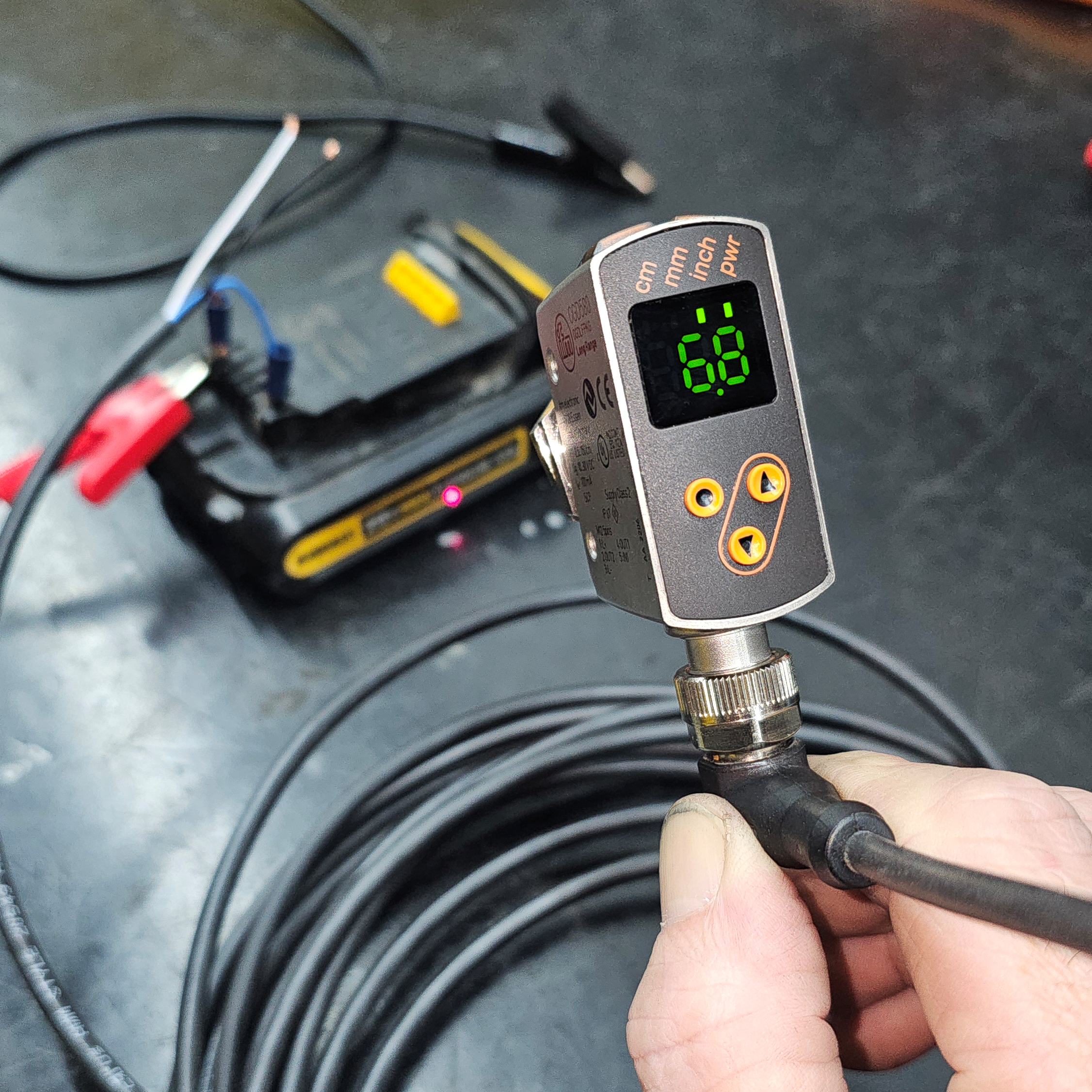

FRONT END LASER HEIGHT SENSOR
FRONT WHEEL SPEED SENSOR
BRAKES

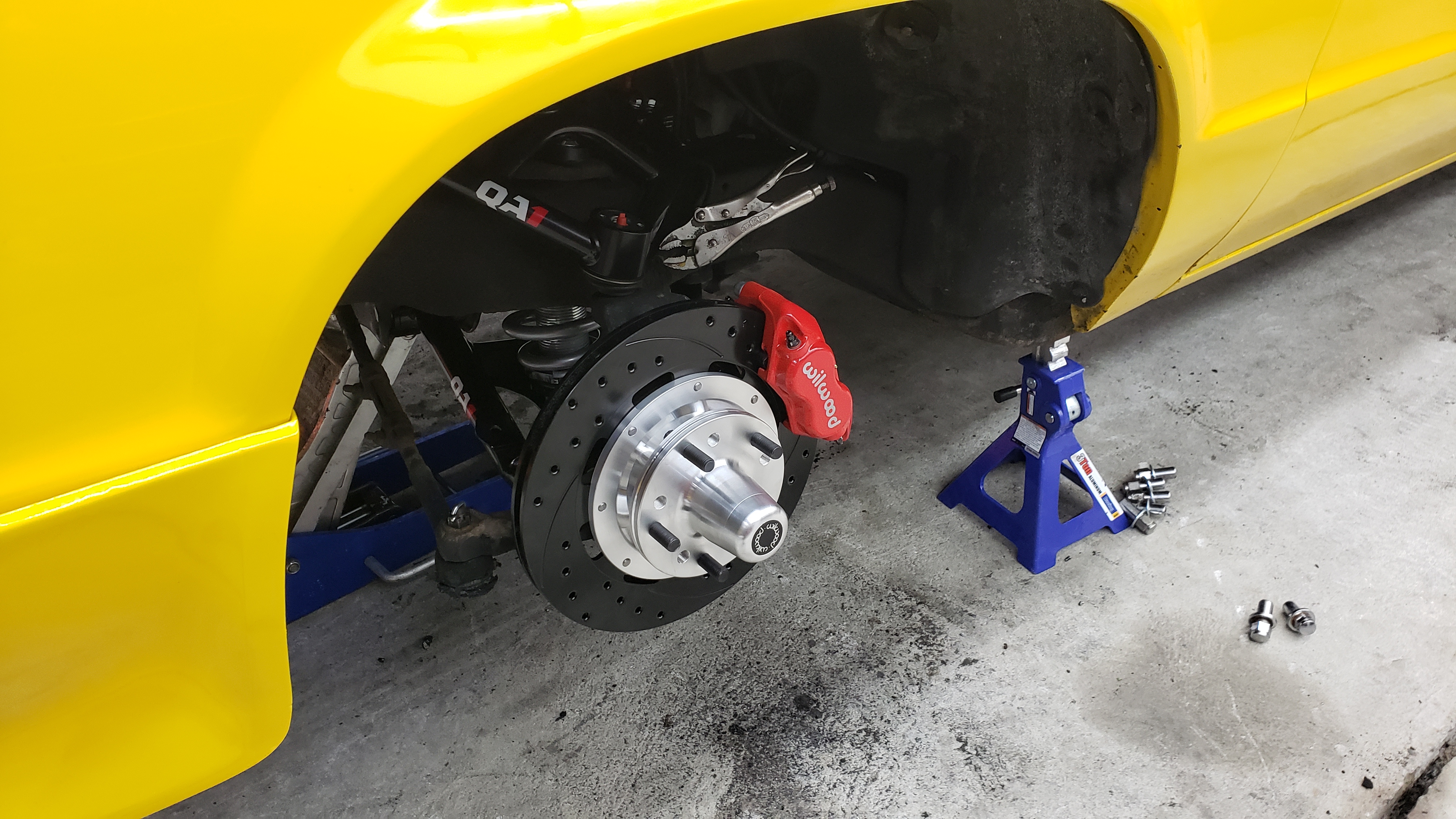

WILWOOD 12" FRONT ROTORS
WILWOOD 4 PISTON FRONT CALIPERS

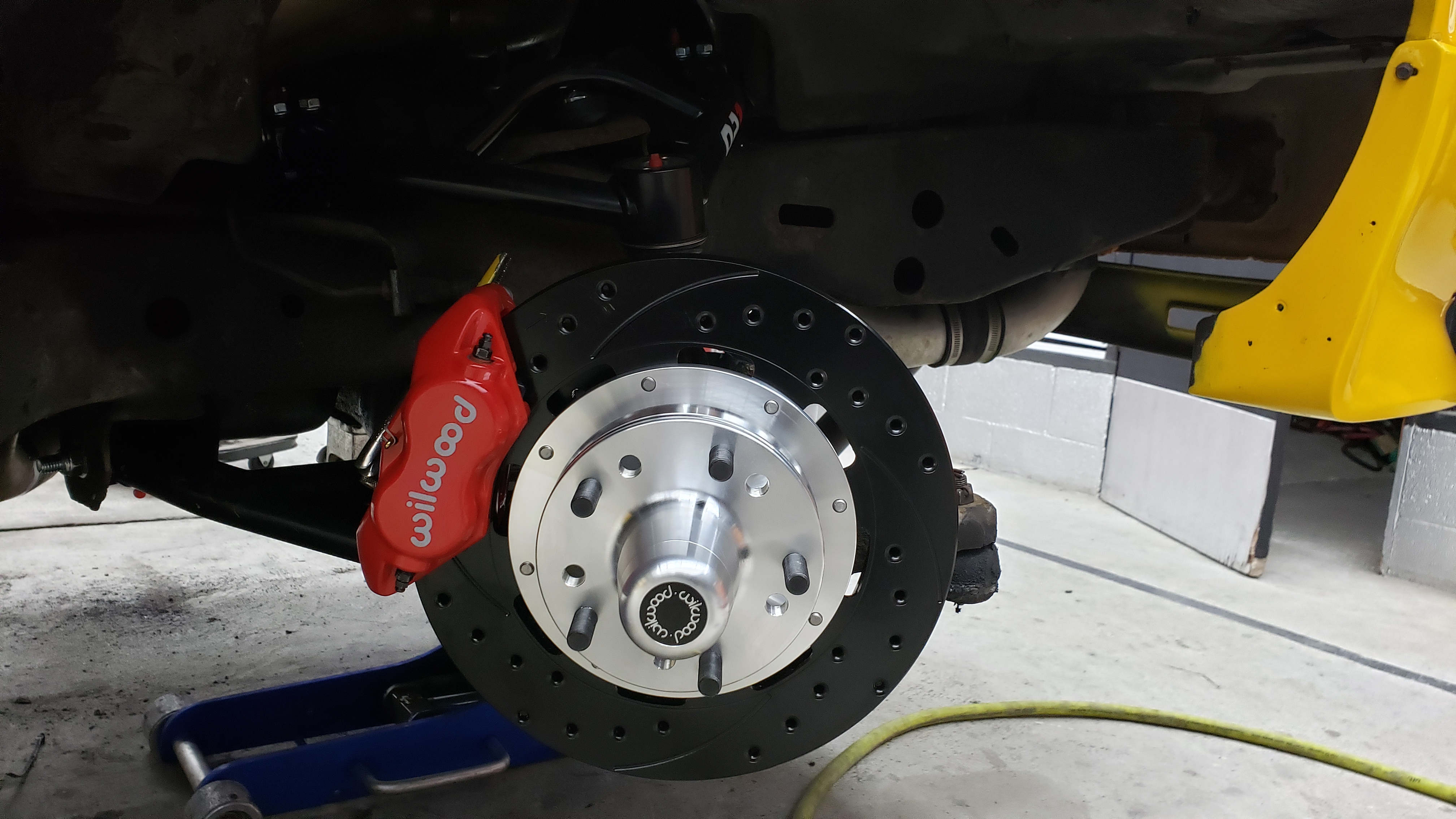

WILWOOD ALUMINUM FRONT HUB ASSEMBLIES
